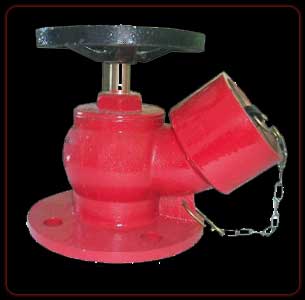

Landing / Hydrant Valve
- Remove blank cap by pulling plunger outward.
- Connect RRL Canvas Hose by inserting coupling in the Hydrant Valve.
- Uncoil the hose .
- Connect Short Branch Pipe nozzle at the other end. Rotate the hydrant wheel anti-clock wise.
- Hold canvas hose firmly and direct water on base of the fire..
|
 |

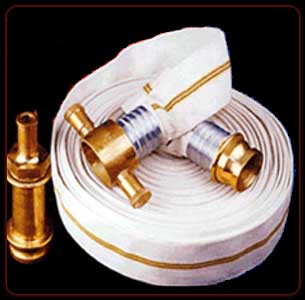

RRL (Rubber Lined Re-inforced) Canvas Hose
- This is used with Hydrant Valve fitted on the fire pipe line.
- The length is usually 15 Mtrs.
- It becomes hard and heavy when water flows through it.
|
 |

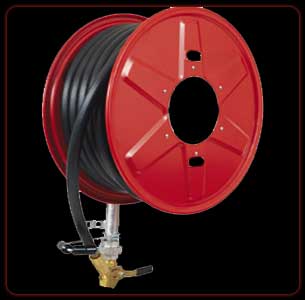

Hose Reel
- Open the Gate valve.
- Uncoil the ruber hose to full length (30 mtrs. long approx.)
- Open the hand control nozzle at the other end and direct water on the base of fire.
|
 |

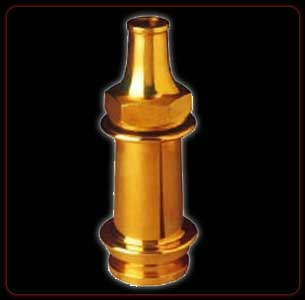

Short Branch Pipe
- This is fitted to the delivery end of RRL Canvas Hose and provides the pressure jet of water.
|
 |

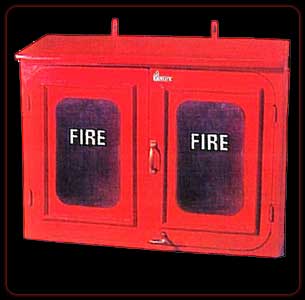

Hose Box
- This contains the RRL Canvas Hose and Short Branch Pipe.
- The key should be available with the care taker.
|
 |

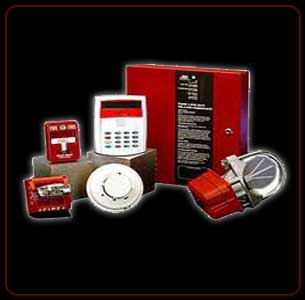

Fire Alarm System
- This operates on 12 | 24 Volt DC.
- During a fire emergency, use hammer to break glass of the Manual Call Point (MCP) box.
- The alarm will be activated.
- After the emergency is over, switch off the alarm from stabilizer panel on ground floor, usually situated near the lift | elevator.
|
| |
|
